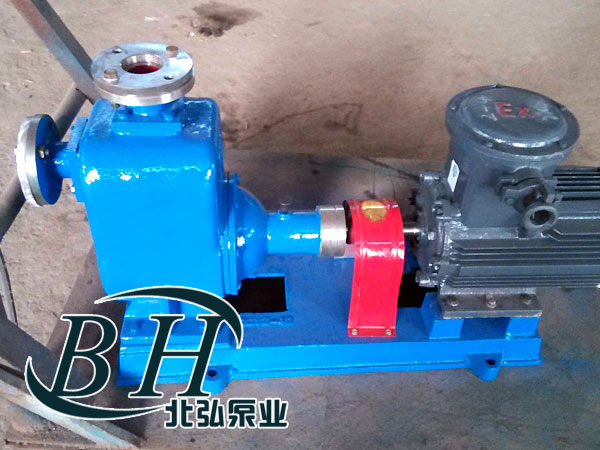

CYZ型自吸式离心油泵是根据国内外有关技术资料经吸收、消化、改进后研制而成的离心泵类产品，该泵适用于石油行业、陆地油库、油罐车的理想产品，并适合于作船用货油泵、舱底泵、消防泵和压载泵及机器降温水循环等，分别输送汽油、煤油、柴油、航煤等石油产品和海水、清水，介质温度-20℃-80℃，如输送化工液体可改用耐腐蚀机械密封。
| 型号 | 流量 |
扬程 m |
泵汽蚀 余量 m |
自吸性能 min/5m |
转速 r/min |
进出口径 mm |
电机 | ||
| m3/h | L/min | 型号 | 功率kw | ||||||
| 25CYZ-27 | 3 | 50 | 27 | 3 | 3 | 2900 | 25 | YB801-2 | 0.75 |
| 40CYZ-20 | 6.3 | 105 | 20 | 3.5 | 2 | 2900 | 40×32 | YB802-2 | 1.1 |
|
40CYZ-40 (50CYZ-40) |
10 | 167 | 40 | 3.5 | 1.5 | 2900 |
50×40 (50) |
YB112M-2 | 4 |
| 50CYZ-12 | 15 | 250 | 12 | 3.5 | 2.5 | 2900 | 50 | YB90S-2 | 1.5 |
| 50CYZ-20 | 18 | 300 | 20 | 3.5 | 2 | 2900 | 50 | YB90L-2 | 2.2 |
| 50CYZ-35 | 14 | 233 | 35 | 3.5 | 1.5 | 2900 | 50 | YB112M-2 | 4 |
| 50CYZ-50 | 12.5 | 208 | 50 | 3.5 | 1.5 | 2900 | 50 | YB132S1-2 | 5.5 |
| 50CYZ-60 | 15 | 250 | 60 | 3.5 | 1.5 | 2900 | 50 | YB132S2-2 | 7.5 |
| 50CYZ-75 | 20 | 333 | 75 | 3.5 | 1.5 | 2900 | 50 | YB160M1-2 | 11 |
| 65CYZ-15 | 30 | 500 | 15 | 4 | 2 | 2900 | 65 | YB100L-2 | 3 |
| 65CYZ-30 | 25 | 416 | 30 | 4 | 2 | 2900 | 65 | YB112M-2 | 4 |
| 80CYZ-13 | 35 | 583 | 13 | 4 | 3.5 | 2900 | 80 | YB100L-2 | 3 |
| 80CYZ-17 | 43 | 716 | 17 | 4 | 2 | 2900 | 80 | YB112M-2 | 4 |
| 80CYZ-25 | 50 | 833 | 25 | 4 | 1.5 | 2900 | 80 | YB132S2-2 | 7.5 |
| 80CYZ-32 | 50 | 833 | 32 | 4 | 1.5 | 2900 | 80 | YB132S2-2 | 7.5 |
| 80CYZ-55 | 60 | 1000 | 55 | 4 | 1.5 | 2900 | 80 | YB160L-2 | 18.5 |
| 80CYZ-70 | 60 | 1000 | 70 | 4 | 1.2 | 2900 | 80 | YB180M-2 | 22 |
| 100CYZ-40 | 100 | 1667 | 40 | 4 | 2 | 2900 | 100 | YB180M-2 | 22 |
| 100CYZ-40A | 100 | 1667 | 40 | 4 | 1.5 | 1470 | 100 | YB180L-4 | 22 |
| 100CYZ-65 | 100 | 1667 | 65 | 4 | 2 | 2900 | 100 | YB200L1-2 | 30 |
| 100CYZ-75 | 70 | 1167 | 75 | 4 | 2 | 2900 | 100 | YB200L1-2 | 30 |
| 150CYZ-55 | 160 | 2667 | 55 | 5 | 2 | 2900 | 150 | YB225M-2 | 45 |
| 150CYZ-65 | 170 | 2833 | 65 | 5 | 1.3 | 1470 | 150 | YB250M-4 | 55 |
| 200CYZ-63 | 280 | 4667 | 63 | 5 | 1.5 | 1480 | 200 | YB280M-4 | 90 |
| 80CYZ-125 | 50 | 833 | 125 | 4 | 1.5 | 2900 | 80 | YB250M-2 | 55 |
| 100CYZ-125 | 100 | 1667 | 125 | 4 | 1.5 | 2900 | 100 | YB280S-2 | 75 |
| 150CYZ-125 | 150 | 2500 | 125 | 5 | 1.5 | 2900 | 150 | YB315S-2 | 110 |
| 200CYZ-125 | 200 | 3333 | 125 | 5 | 1.5 | 2900 | 200 | YB315M-2 | 132 |
| 250CYZ-50 | 400 | 6666 | 50 | 6 | 1.5 | 1480 | 250 | YB280M-4 | 90 |
