用途

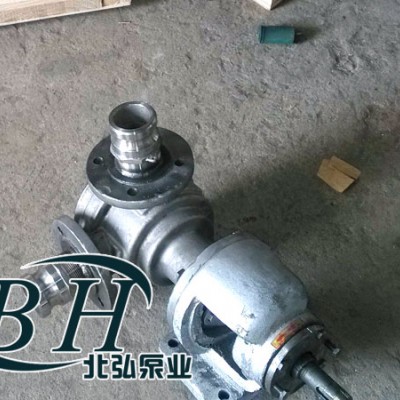

NCB不锈钢齿轮泵采用内啮合原理,内外齿轮节圆紧靠一边,另一边被"月牙板"二隔开,齿轮同向转动,无困液现象,结构先进,体积小,流量大,噪音低,寿命长.
结构特点
NCB不锈钢齿轮泵适用于输送各种轻质,挥发性液体,直至重质,粘稠液体,甚至半固态液体.广泛应用于石油,化工,油脂,涂料等行业.

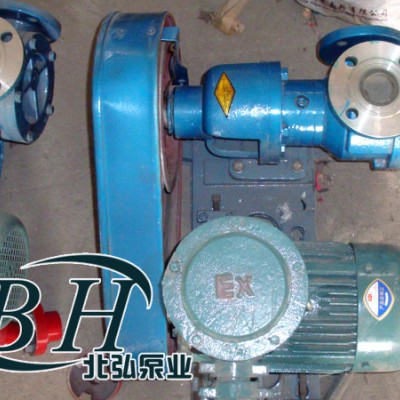

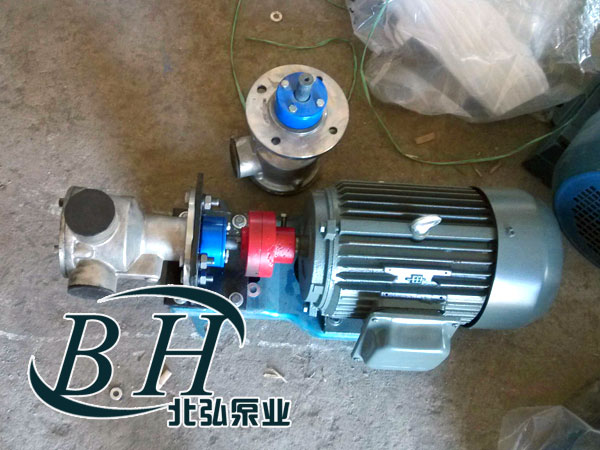

NCB不锈钢齿轮泵有直联式的连接方式，还有配用皮带轮式与减速器的方式。
性能参数表
|
型号
|
进出口径
|
流量
|
压力
|
吸入真空
|
转速
|
配用电机
|
装配形式
|
重量
|
外形尺寸
|
|
|
型号
|
功率
|
|||||||||
|
NCB-1.2/0.3
|
Gi"
|
1.2
|
0.3
|
0.03
|
500
|
Y90L-6
|
1.1
|
W-L
|
10
|
234X140x140
|
|
NCB-1.8/0.3
|
G11/2"
|
1.8
|
0.3
|
0.03
|
500
|
1.5
|
W-L
|
11
|
254X153X153
|
|
|
NCB-3/0.3
|
3
|
700
|
Y100L-6
|
1.5
|
W-L
|
|||||
|
NCB-6/0.5
|
40
|
6
|
0.5
|
0.05
|
500
|
3
|
W-L
|
70
|
700x370X300
|
|
|
NCB-8/0.5
|
8
|
570
|
Y100L2-4
|
3
|
W-L
|
|||||
|
NCB-12/0.5
|
50
|
12
|
0.5
|
0.05
|
690
|
Y132M1-6
|
4
|
W-L
|
140
|
800x550X420
|
|
NCB-16/0.5
|
16
|
380
|
Y132M2-6
|
5.5
|
W-L
|
|||||
|
NCB-20/0.5
|
20
|
460
|
Y132M-4
|
7.5
|
W-L
|
|||||
|
NCB-12/0.7
|
80
|
12
|
0.7
|
0.05
|
220
|
Y160M-6
|
7.5
|
W-L
|
330
|
910x780X500
|
|
NCB-18/0.7
|
18
|
310
|
Y160L-6
|
11
|
W-L
|
|||||
|
NCB-24/0.5
|
24
|
0.5
|
0.05
|
420
|
Y10M-4
|
11
|
W-L
|
|||
|
NCB-30/0.5
|
30
|
520
|
Y160L-4
|
15
|
W-L
|
|||||
|
NCB-40/0.5
|
12
|
40
|
0.5
|
0.06
|
230
|
Y200L1-6
|
18.5
|
W-L
|
750
|
1240x1022X610
|
|
NCB-50/0.5
|
50
|
290
|
Y200L2-6
|
22
|
W-L
|
|||||
|
NCB-60/0.5
|
60
|
350
|
Y200L2-6
|
22
|
W-L
|
|||||
|
NCB-70/0.5
|
70
|
410
|
Y225M-6
|
30
|
W-L
|
|||||
|
NCB-80/0.5
|
80
|
470
|
Y200L-4
|
30
|
W-L
|
|||||
|
NCB-100/0.5
|
150
|
100
|
0.5
|
0.06
|
320
|
Y280S-6
|
45
|
W-L
|
||
|
NCB-120/0.5
|
120
|
380
|
Y280M-6
|
55
|
W-L
|
|||||
|
NCB-150/0.5
|
150
|
480
|
Y280S-4
|
75
|
W-L
|
|||||
